If you’ve ever needed to change a filter, check for a strange noise, or troubleshoot an HVAC issue, you’ve probably asked yourself: Where is the air handler located? It’s a common question, especially for first-time homeowners or anyone who’s just moved into a new place.
The air handler is a key component of your heating and cooling system. It circulates conditioned air throughout your home and houses important parts like the blower motor and air filter. Knowing where your air handler is located helps you maintain your system, catch problems early, and communicate clearly with service professionals when needed.
Let’s walk through the most common air handler locations, how to identify yours, and why this knowledge matters for Charlotte-area homeowners.
What Is an Air Handler?
Before we talk about location, it helps to understand what an air handler actually does.

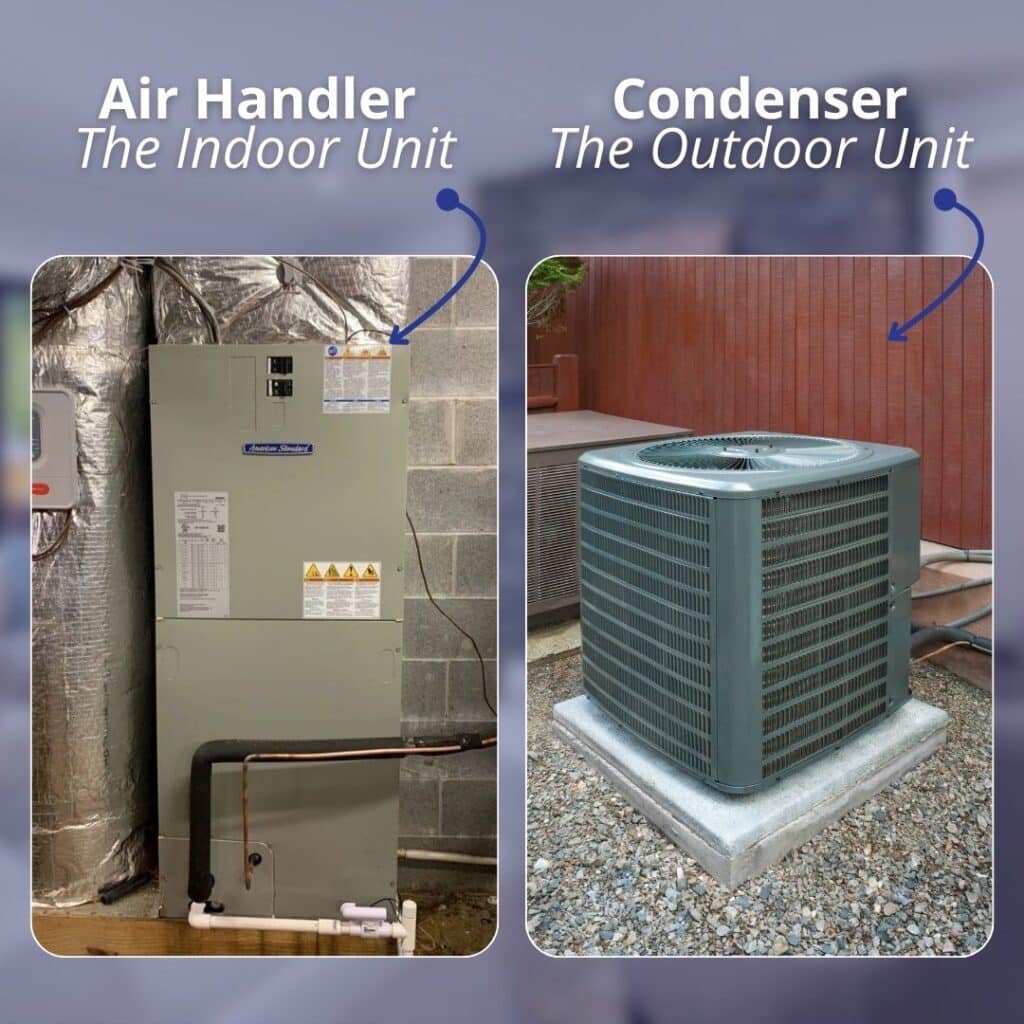

The air handler is the indoor unit of your HVAC system. It works with your outdoor condenser or heat pump to circulate air throughout your home. Inside the air handler, you’ll typically find:
- Blower motor and fan: Pushes conditioned air through your ductwork
- Evaporator coil: Absorbs heat from indoor air during cooling
- Air filter: Captures dust, allergens, and particles before air circulates
- Electrical components: Controls and connections that power the system
In homes with heat pumps, which are common throughout the Charlotte area, the air handler is a separate indoor unit that pairs with the outdoor equipment. In homes with a furnace, the air handler function is built into the furnace unit itself.
Common Air Handler Locations
Air handlers can be installed in various spots depending on your home’s design, age, and HVAC configuration. Here are the most common locations you’ll find in Charlotte-area homes.
Closets and Utility Rooms
Many homes, especially single-story houses and apartments, have the air handler tucked inside a dedicated closet or utility room. This keeps the unit out of sight while remaining accessible for maintenance.
Look for louvered doors or vented closet doors in hallways, laundry rooms, or near the center of your home. The vents allow airflow to the unit. In newer construction throughout Ballantyne, South End, and NoDa, builders often include purpose-built HVAC closets with proper ventilation and drainage.
Attics
Attic installations are extremely common in the Charlotte region, particularly in two-story homes and houses built on slab foundations. Placing the air handler in the attic keeps it out of living spaces and allows for efficient ductwork distribution to upper floors.
If your home has ceiling vents and you can’t find the air handler elsewhere, check your attic. You’ll typically find an access panel or pull-down stairs leading to the space. The unit usually sits on a platform with a drain pan underneath to catch condensation.
Attic air handlers in North Carolina face temperature extremes. Summer heat in an uninsulated attic can stress the system, and condensation issues are common due to our humidity. Regular inspection of the drain pan and lines is essential.
Basements
Homes with basements often have the air handler installed there, especially older homes throughout Plaza Midwood, Dilworth, and Myers Park. Basements offer easy access for maintenance and keep the unit away from living areas.
Look for the air handler near your water heater or electrical panel, as utility equipment is often grouped together. Basement installations work well for distributing air to upper floors through vertical ductwork.
Garages
Some homes, particularly those without basements or usable attic space, have air handlers installed in the garage. This is more common in ranch-style homes and properties where interior space is limited.
Garage installations require proper clearances and should be positioned away from vehicles to avoid damage. If your air handler is in the garage, make sure the area stays relatively clean and that nothing blocks airflow around the unit.
Crawl Spaces
In homes built over crawl spaces, particularly older construction in areas like Matthews, Mint Hill, and Indian Trail, you may find the air handler installed below the house. This isn’t the most common setup, but it exists in some properties.
Crawl space installations can be challenging to access and are more susceptible to moisture issues. If your air handler is in the crawl space, regular inspections are especially important.
| Location | Common In | Key Considerations |
| Closet/Utility Room | Apartments, single-story homes | Easy access, takes interior space |
| Attic | Two-story homes, slab foundations | Temperature extremes, condensation concerns |
| Basement | Older homes with basements | Easy access, potential moisture concerns |
| Garage | Ranch homes, limited interior space | Dust exposure, temperature fluctuations |
| Crawl Space | Older homes | Hard to access, moisture issues |
How to Find Your Air Handler
If you’re not sure where your air handler is located, here are some tips to track it down.
- Follow the return vents. Your air handler pulls air in through return vents, which are usually larger than supply vents. Follow the path from your largest return vent toward the source.
- Check near the outdoor unit. The refrigerant lines connecting your outdoor condenser or heat pump to the indoor air handler enter your home somewhere. Find where those insulated copper lines go through the wall and follow them inside.
- Listen when the system runs. Turn on your HVAC and listen for the blower. The air handler makes a distinct humming sound when operating, which can help you locate it.
- Look for the filter. Air filters are typically accessed at or near the air handler. If you know where your filter goes, you’ve likely found your air handler.
Why Air Handler Location Matters
Knowing where your air handler is located isn’t just about satisfying curiosity. It has practical implications for maintenance, efficiency, and home inspections.
Filter Changes and Maintenance
Your air filter needs regular replacement, typically every one to three months, depending on filter type and household factors like pets or allergies. If you don’t know where the air handler is, you can’t easily change the filter.
Dirty filters restrict airflow, reduce efficiency, and strain your system. They can also affect indoor air quality, which matters especially for families with allergies or respiratory concerns.
HVAC technicians also need access to your air handler for routine maintenance and repairs. Keep the space around your unit clear of storage and clutter so technicians have room to work.
Condensation and Drainage
Air handlers produce condensation during cooling, which drains through a line to the exterior or a floor drain. If this drain line clogs, water can back up and cause damage.
Knowing your air handler’s location helps you monitor for leaks, water stains, or drainage issues. This is especially important for attic installations where a leak could damage ceilings below.
Home Inspections
During a home inspection, inspectors evaluate HVAC components, including the air handler. They check for proper installation, drainage, electrical connections, and signs of wear or damage.
If you’re buying a home in the Charlotte area, understanding where the air handler is located helps you follow along with inspection findings. If you’re selling, ensuring the area is accessible allows for a smoother inspection process.
Air Handler Issues to Watch For
Now that you know where your air handler is located, here are common issues to keep an eye on.
- Water around the unit indicates a drainage problem, possibly a clogged drain line or cracked pan
- Unusual noises like squealing, grinding, or rattling suggest mechanical problems with the blower
- Weak airflow may mean the filter is clogged, the blower is failing, or there are ductwork issues
- Short cycling, where the system turns on and off frequently, could indicate overheating or electrical problems
- Musty odors often signal mold growth on the evaporator coil or drain pan, common in humid Charlotte summers
Other Related Questions to Explore
What’s the difference between an air handler and a furnace?
A furnace generates heat by burning fuel or using electric resistance. An air handler circulates air and works with a heat pump or AC system. Many Charlotte homes use heat pumps with air handlers rather than traditional furnaces.
What else should I know about my HVAC system before buying a home?
Beyond the air handler, inspectors evaluate ductwork condition, ventilation, thermostat function, refrigerant lines, and the outdoor unit. Age, maintenance history, and efficiency ratings all factor into the overall assessment.
How does HVAC condition affect a home inspection?
HVAC issues are among the most common findings in home inspections. Problems range from minor maintenance needs to major repairs. Understanding your system’s condition helps you budget and negotiate effectively.
How often should Charlotte homeowners schedule maintenance inspections?
Annual HVAC service is recommended. For overall home maintenance, many homeowners benefit from periodic inspections to catch developing issues with roofing, plumbing, electrical, and structural components.
When to Call a Professional
Contact an HVAC professional or schedule a home inspection if you notice:
- Water that leaks from or around the air handler
- The system isn’t heating or cooling effectively
- Strange noises or burning smells coming from the unit
- The blower runs constantly or won’t turn on
- Your energy bills have increased unexpectedly
- You’re buying a home and want the HVAC system thoroughly evaluated
For homebuyers in the Charlotte area, a professional home inspection includes evaluation of the air handler, ductwork, and overall HVAC condition. This gives you a clear picture of what you’re purchasing and any repairs that may be needed.
Conclusion
Your air handler is most likely located in a closet, attic, basement, or garage, depending on your home’s design and age. Finding it helps you maintain your HVAC system properly, change filters on schedule, and catch potential problems before they become expensive repairs.
For Charlotte-area homeowners, understanding your home’s systems is part of responsible ownership. And if you’re buying or selling a home, knowing where key components like the air handler are located helps you navigate the inspection process with confidence.
